1999 Toyota 4Runner Fuses
- 37
- Searchable fuse mappings
- 3
- Stored diagrams
| Fuse | Amp | Function | Box |
|---|---|---|---|
| ALT-S | — | Charging system | Engine compartment (U.S.A.) |
| PWR OUTLET | 15A | Power outlets | Engine compartment (U.S.A.) |
| RR HTR | 10A | Rear air conditioning system | Engine compartment (U.S.A.) |
| MPX- B | 15A | Power back window, back door lock, back window wiper, open door warning (back door), power door lock control system, back window defogger, horns, theft deterrent system | Engine compartment (U.S.A.) |
| DOME | 15A | Interior lights, personal lights, luggage compartment light, clock, car audio system, gauges and meters, ignition switch light, vanity mirror light, daytime running light | Engine compartment (U.S.A.) |
| OBD | — | On- board diagnosis system | Engine compartment (U.S.A.) |
| EFI | 20A | Multiport fuel injection system/sequential multiport fuel injection system | Engine compartment (U.S.A.) |
| HEAD(RH) | 10A | Right- hand headlight, gauges and meters | Engine compartment (U.S.A.) |
| HEAD(LH) | 10A | Left- hand headlight | Engine compartment (U.S.A.) |
| TAIL | 10A | Tail lights, license plate lights, instrument panel lights | Engine compartment (U.S.A.) |
| A.C | 10A | Air conditioning control system | Engine compartment (U.S.A.) |
| MIR HTR | 10A | Outside rear view mirror heaters | Engine compartment (U.S.A.) |
| DEFOG | 15A | Back window defogger | Engine compartment (U.S.A.) |
| FOG | 15A | Front fog lights | Engine compartment (U.S.A.) |
| DRL | — | Daytime running light system | Engine compartment (U.S.A.) |
| HEAD (HI RH) | 10A | Right- hand headlight (high beam), gauges and meters | Engine compartment (U.S.A.) |
| HEAD (HI LH) | 10A | Left-hand headlight (high beam) | Engine compartment (U.S.A.) |
| HEAD (LO RH) | 10A | Right- hand headlight (low beam) | Engine compartment (U.S.A.) |
| HEAD (LO LH) | 10A | Left- hand headlight (low beam) | Engine compartment (U.S.A.) |
| ECU- IG | 10A | Cruise control system, anti- lock brake system, electronically controlled automatic transmission system, power antenna, power window, electric moon roof, power back window, back window defogger, back window wiper | Engine compartment (U.S.A.) |
| TURN | 10A | Turn signals lights, emergency flashers | Engine compartment (U.S.A.) |
| WIPER | 20A | Windshield wipers and washer, power door lock control system, back window defogger, horns, theft deterrent system | Engine compartment (U.S.A.) |
| 4WD | 20A | A.D.D. control system, four- wheel drive control system, rear differential lock system | Engine compartment (U.S.A.) |
| ACC | 15A | Car audio system, power antenna, clock, power rear view mirror control, cigarette lighter, SRS airbag system, seat belt pretensioners, electronically controlled automatic transmission system, power outlets, theft deterrent system | Engine compartment (U.S.A.) |
| GAUGE | 10A | Gauges and meters, back window defogger, daytime running light system, air conditioning system, cruise control system, rear differential lock system, electronically controlled automatic transmission, back- up lights | Engine compartment (U.S.A.) |
| IGN | 10A | SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system, discharge warning light | Engine compartment (U.S.A.) |
| ECU-B | — | Gauges and meters, SRS airbag system, seat belt pretensioners | Engine compartment (U.S.A.) |
| HORN,HAZ | 15A | Horns, emergency flashers | Engine compartment (U.S.A.) |
| STA | — | Starting system | Engine compartment (U.S.A.) |
| STOP | 10A | Stop lights, high- mounted stoplight | Engine compartment (U.S.A.) |
| HEATER | 50A | Air conditioning system, all components in ”A.C” fuse | Engine compartment (U.S.A.) |
| AM1 | 40A | Starting system, all components in ”ACC”, ”GAUGE”, ”TURN”, ”ECU- IG”, ”WIPER”, ”4WD” fuses | Engine compartment (U.S.A.) |
| J/B | 50A | All components in ”POWER”, ”HORN,HAZ”, ”STOP”, ”ECU- B” fuses | Engine compartment (U.S.A.) |
| AM2 | 30A | Starting system, multiport fuel injection system/sequential multiport fuel injection system, all components in ”STA”, ”IGN” fuses | Engine compartment (U.S.A.) |
| POWER | 30A | Power window, power back window, electric moon roof, power seat, back door lock | Engine compartment (U.S.A.) |
| ABS | 60A | Anti- lock brake system | Engine compartment (U.S.A.) |
| ALT | 120A | Charging system, all components in ”AM1”, ”HEATER”, ”TAIL”, ”RR HTR”, ”ALT- S”, ”DEFOG”, ”MIR HTR” and ”ACC” fuses | Engine compartment (U.S.A.) |
Fuse boxes / diagrams

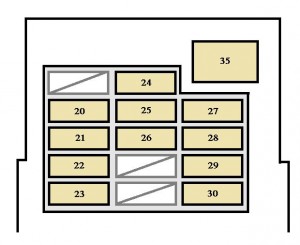

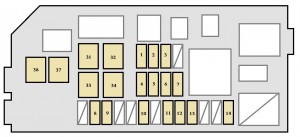

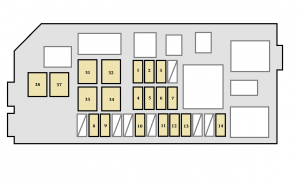

Toyota 4Runner (1999 – 2000) – fuse box diagram
